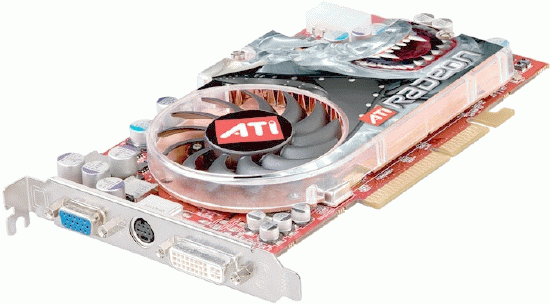

Radeon X800 Pro 256 MB DDR3 |
|
||||
|
|||||
|
| The RADEON X800 Pro 256 MB DDR3 brings you
twice the performance has the RADEON PRO 9800 256 MB
DDR2. This card has a new architecture based on the latest .13 micron, low-k manufacturing process with ultra and efficient GDDR3 memory, producing extreme data rates and very fast accelaration. They also improved the cooling system of the chip it does not become overheated even after many hours of usage. Unfortunatly it does not have the S-Video and Composite In feature only the Platinum edition has it. Some of their upgraded fetures are: The RADEON X800 Pro 256 MB DDR3 uses a software called CATALYST™. This card provides hardware support for one DVI-I monitor or two VGA monitors using the supplied DVI-I-to-VGA adapter. A TV can also be used to expand your desktop by using the Composite and S-Video and out. Because the card
support Dual Monitors, the HYDRAVISION in CATALYST has
Features like -Transparent windows and menus CATALIST also offers other features like : The SMARTGART is a suite of testing and diagnostics tools that perform a variety of bus tests to determine the optimal settings for your ATI graphics accelerator installed in your computer. SMARTGART automatically configures your graphics device to the optimal settings. The SMARTSHADER™ HD; Shaders are the key technology that allow game developers to program a limitless range of visual effects that execute on the graphics processor. SMARTSHADER HD incorporates enhanced DirectX 9.0 vertex shader and pixel shader support that makes these effects easier to create. Pixel shader programs can contain up to 10x more instructions than was possible in previous products, allowing more sophisticated effects. And a combination of more efficient instruction execution, increased register counts, and new F-buffer technology ensure that even the most complex shaders run at the fastest speeds. The SMOOTHVISION HD; Both of these modes give users the ability to choose between 2x, 3x, 4x, 5x, and 6x sampling, allowing for a total of 10 different anti-aliasing settings. This allows users to quite easily select both the desired level of visual quality and the corresponding performance level.
|
The VIDEOSHADER™ HD; VIDEOSHADER HD is a key feature of the video processing engine that allows it to tap into the power of the programmable pixel shader units of the RADEON X800 3D core. This allows shaders to be used to accelerate many different video processing tasks, including noise removal (VIDEOSOAP), de-blocking (FULLSTREAM), adaptive de-interlacing, frame rate conversion, color space conversion, and much more. VIDEOSHADER HD also provides the flexibility required to support all of the latest video formats, including MPEG1/2/4, Real, DivX, and WMV9. The HyperZ™ HD; HYPER Z HD is an essential technology for unlocking the potential of High Definition Gaming in the RADEON X800. By maximizing the efficiency of data transfer between graphics memory and the 3D rendering engine, it removes the key memory bandwidth performance bottlenecks that otherwise occur when rendering complex, anti-aliased scenes at high display resolutions. This is accomplished through a combination of hidden surface removal, lossless compression, caching, and fast clearing techniques. ATI brings you new technologies as well like the ; The 3Dc; 3Dc is an exciting new compression technology designed to bring out fine details in games while minimizing memory usage. It is the first compression technique optimized to work with normal maps, which allow fine per-pixel control over how light reflects from a textured surface. With up to 4:1 compression possible, this means game designers can now include up to 4x the detail without changing the amount of graphics memory required and without impacting performance. The RADEON X800 is capable of over 140 billion floating point operations per second ( Giga FLOPS ). With an advanced pixel shader engine and 12 parrallel pixel pipelines, it delivers 6 gigapixels/second fill rate i full precision. Plus 6 programmable vertex shader pipelines capable of over 700 million verticies per second. The RADEON X800 Pro 256 MB DDR3 brings you twice the performance has the RADEON PRO 9800 256 MB DDR2 which is plenty of power in inder to run those latest games like Doom 3 and Half Life 2.
|
Notes Manufacturer VPU=Visual Processing Unit Memory AGP = Accelerated Graphics Port Key Features •
12 parallel redering pipelines Display Support •
VGA connector for analog CRT Minimum Requirements •
Windows 2000 and XP The Box Contains •
Graphic Card Warranty • 3 years Limited Hardware Specialist Sebastien Keddy |
